OMNIE Manifolds

The manifold distributes the primary warm water into each underfloor heating circuit. The manifold is the central point for the underfloor heating system. It brings together the warm water feed from a heat source, the pipe work from the floor and the thermostat wiring.

A manifold can serve areas up to 200m2 but installation is easier if a manifold is installed in an accessible central location on each floor. The size of the manifold depends on the area it is serving.

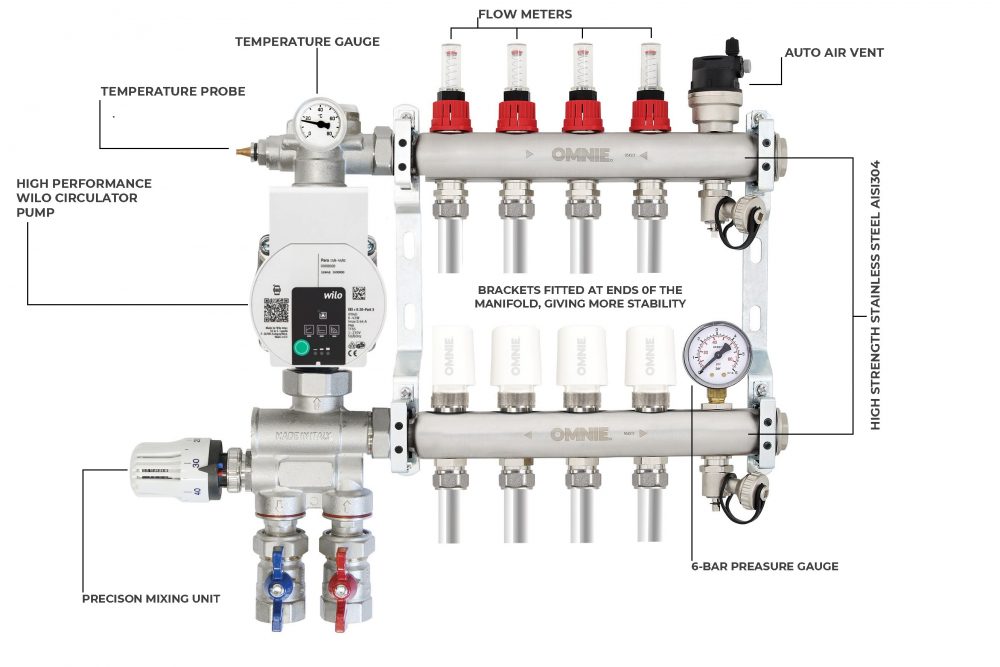

Manifold with mixing unit and circulator:

The manifold is supplied with a mixing unit and circulator to ensure the water temperature entering the floor does not exceed the design temperature. This manifold configuration is essential if the heat source is able to supply high temperature water.

‘Branch’ manifold:

Again, if the water is only supplied at the correct temperature then the mixing valve is unnecessary. Also, if there is a primary circulator installed then this  can be removed from the manifold assembly.

Precision-Flo Manifold


Panel Thickness (mm)
Length (mm)
Various - see datasheet
Width (mm)
Various - see datasheet
Independently Tested
Suitable For
All OMNIE Underfloor Heating Systems
Pipe Centres (mm)
Heat Output (W/m2)
Acoustic Installations
Weight With Water (kg/m2)
Compressive Strength (kPa)
Thermal Conductivity (W/mK)

Heat outputs

How to specify

We recommend that you order our products directly through us so that you obtain the most appropriate system and performance specification for the project.

To get a quote please click here or call 01392 36 36 05

Information on product performance and suitability can be supplied by our projects team who are available via our technical support line – 01392 36 36 05. Alternatively please speak to your local business development manager or area sales manager who will happily talk you through our product range and also arrange for samples as you may require.

If you need information on complex constructions such as those with specific acoustic properties, or you have a specialist requirement that is not covered by our standard product range please call 01392 36 36 05.

Detailed installation instructions and a layout plan of the system is included in every system that gets dispatched to site. If you require any additional information at the time of installation we recommend you visit our resources library on our website.
