OMNIE FoilFloat Underfloor Heating System - for floating floors.
for floating floors
No noise on warm-up or cool down

No noise on warm-up or cool down

Multi-directional pipe channels

Multi-directional pipe channels

Easy to trim panels on site

Easy to trim panels on site

High compressive strength insulation with integrated underfloor heating for floating floors

  • Fully foiled layer maximises heat output
  • High compressive strength insulation provides strong support
  • Faster to install than traditional insulation panels thanks to multi-directional channels
  • Completely silent on warm up and cool down

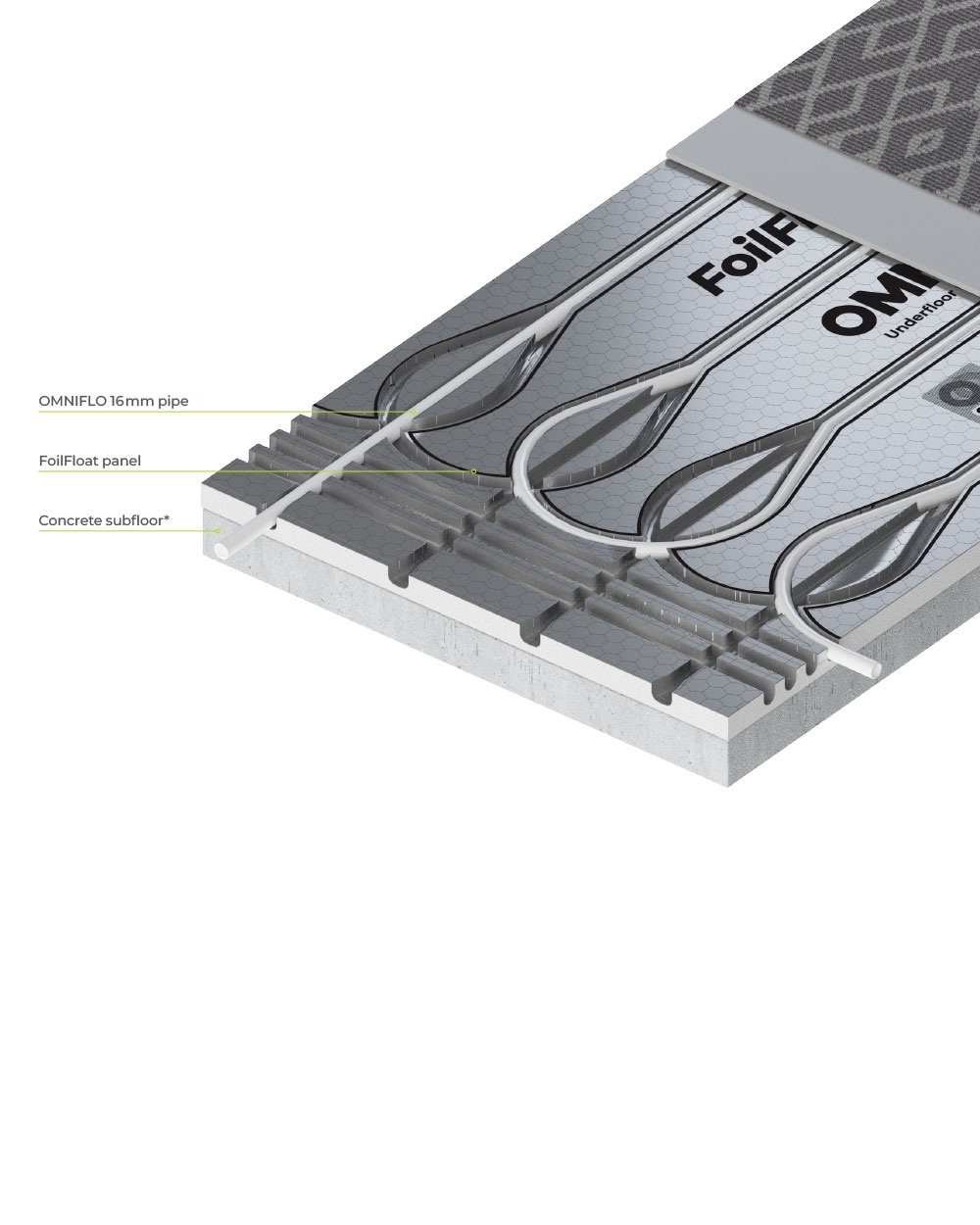

OMNIE FoilFloat system can be laid over a flat and even, solid floor. This system provides underfloor heating within a floating insulation floor where others install their own floor over. The floor by nature of the construction, will float over the underfloor heating system.

The universal panels provide the support for the fully floating floor deck that is laid over. Each panel is manufactured from extruded polystyrene insulation (XPS) which has a high compressive strength, suitable for floating floor applications.

The heat diffusers are pre-bonded and made from soft temper aluminium. As no thick rigid plates are used the panels are easily trimmed on site. Once the panels are in place, the pipe is pressed into the channels piercing the foil diffuser. To complete the floor a tongue and groove deck or floor finish is laid over.

The product is available in a standard thickness of 25mm. This uses 12mm pipe.


How to install OMNIE FoilFloat

FoilFloat – for Floating floors


Panel Thickness (mm)
Length (mm)
Width (mm)
Independently Tested
Suitable For
Floating floors
Pipe Centres (mm)
Heat Output (W/m2)
Acoustic Installations
Weight With Water (kg/m2)
1.5kg (25mm panel)
Compressive Strength (kPa)
Thermal Conductivity (W/mK)

Compare similar products

FoilBatten 25/50 – for batten floors
View more + Compare

Heat outputs

For more information on our performance benchmark please click here.

Heat outputs are dependent on the water temperature, floor construction, system dimensioning, floor finish & design conditions. Contact us for advice and information.

Heat outputs below are based on:

12mm PE-RT pipe at 133mm centres, with 18mm chipboard laid under 15mm wood and carpet & underlay

Air Temperature = 20°C.

Structural Layer + Floor Finish Floor and Return Water Temperature (˚C)





18mm chipboard deck – 15mm Wood Finish (0.1m²K/W)

66 W/m²

55 W/m²

45 W/m²

34 W/m²

18mm Timber Direct Structural Finish (0.13m²K/W)

90 W/m²

76 W/m²

61 W/m²

47 W/m²

18mm chipboard deck – Carpet & Underlay (0.15 m²K/W)

60 W/m²

50 W/m²

41 W/m²

31 W/m²

How to specify

We recommend that you order our products directly through us so that you obtain the most appropriate system and performance specification for the project.

To get a quote please click here or call 01392 36 36 05

Information on product performance and suitability can be supplied by our projects team who are available via our technical support line – 01392 36 36 05. Alternatively please speak to your local business development manager or area sales manager who will happily talk you through our product range and also arrange for samples as you may require.

If you need information on complex constructions such as those with specific acoustic properties, or you have a specialist requirement that is not covered by our standard product range please call 01392 36 36 05.

Detailed installation instructions and a layout plan of the system is included in every system that gets dispatched to site. If you require any additional information at the time of installation we recommend you visit our resources library on our website.
