Integrated insulation and underfloor heating system for timber batten floors.

  • Fully foiled layer maximises heat output
  • High grade insulation increases energy efficiency
  • Faster to install than traditional insulation panels thanks to multi-directional channels
  • Completely silent on warm up and cool down

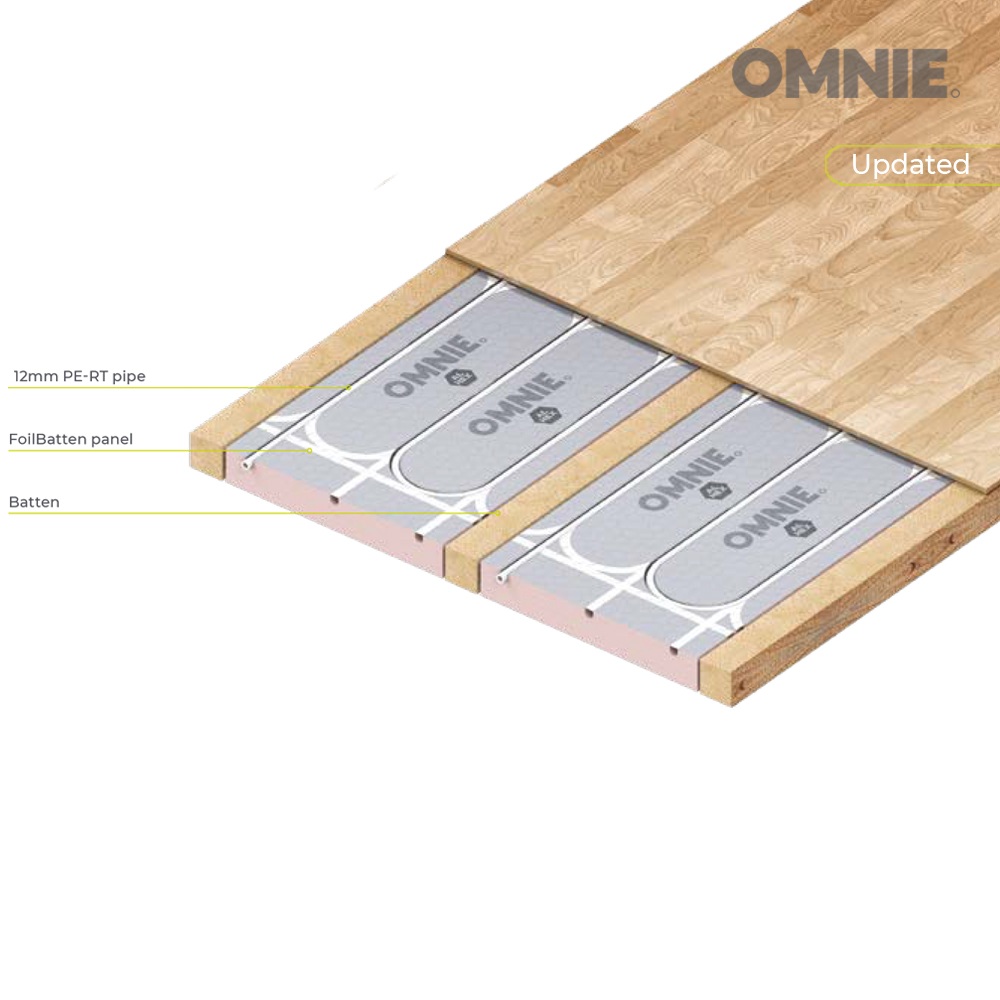

Our FoilBatten system can be laid between timber battens at 400 centres. This system is most appropriate within a timber batten floor where others are to install their own structural floor over the battens.

The universal FoilBatten panels are manufactured from XPS insulation with pre-bonded soft temper aluminium. As no thick rigid plates are used the panels can be easily trimmed on site. The panels are designed so that when a floor deck is laid over and fixed to the battens of the same depth they will be in direct contact with the heat diffuser, ensuring good thermal transfer.

The nature of the FoilBatten panel to transfer heat efficiently increases performance by over 30% compared to systems that rely on air and do not use heat diffusers. Once the panels are in place the pipe is pressed into the channels piercing the foil diffuser and fitted into the notches where the pipe passes between battens.

Specification

OMNIE FoilBatten system using 12mm PE-RT to DIN 4726 pipe installed into FoilBatten panels comprising of XPS expanded polystyrene insulation with pre-bonded heat diffusers to be installed between battens at 400mm centres. Floor deck to be laid and fixed over. The system to be designed, installed and commissioned to BS1264.

How to Install



FoilBatten 25/50 – for batten floors

Specifications

Panel Thickness (mm)
25 / 50
Length (mm)
1200
Width (mm)
340
Independently Tested
BSRIA
Suitable For
Batten Floors
Pipe Centres (mm)
200
Heat Output (W/m2)
83
Acoustic Installations
No
Weight With Water (kg/m2)
1.5
Compressive Strength (kPa)
400
Thermal Conductivity (W/mK)
0.033

Compare similar products

FoilBoard 25 – for suspended floors
View more + Compare

Heat outputs



For more information on our performance benchmark please click here.

Heat outputs are dependent on the water temperature, floor construction, system dimensioning, floor finish & design conditions. Contact us for advice and information.

Based on 12mm PE-RT pipe at 133mm centres with 18mm chipboard laid under 15mm wood, carpet and underlay, and tiles. Air Temperature = 20°C. 0.15 m²K/W = 1.5 TOG.

Floor Finish Floor and Return Water Temperature (˚C)

55/48

50/43

45/38

40/33

Tile Finish (0.01m²K/W)

85 W/m²

72 W/m²

58 W/m²

44 W/m²

15mm Wood Finish (0.1m²K/W)

68 W/m²

57 W/m²

46 W/m²

35 W/m²

Direct 18mm Structural Wood Finish (0.13m²K/W)

92 W/m²

77 W/m²

63 W/m²

48 W/m²

Carpet & Underlay (0.15 m²K/W)

62 W/m²

52 W/m²

42 W/m²

32 W/m²

How to specify

We recommend that you order our products directly through us so that you obtain the most appropriate system and performance specification for the project.

To get a quote please click here or call 01392 36 36 05

Information on product performance and suitability can be supplied by our projects team who are available via our technical support line – 01392 36 36 05. Alternatively please speak to your local business development manager or area sales manager who will happily talk you through our product range and also arrange for samples as you may require.

If you need information on complex constructions such as those with specific acoustic properties, or you have a specialist requirement that is not covered by our standard product range please call 01392 36 36 05.

Detailed installation instructions and a layout plan of the system is included in every system that gets dispatched to site. If you require any additional information at the time of installation we recommend you visit our resources library on our website.
