ScreedPlate – for Screeded Floors – OMNIE Underfloor Heating, Heat Pumps & Ventilation
for screed and concrete floors
Multi-directional pipe channels

Multi-directional pipe channels

Interlocking sheets

Interlocking sheets

Protects pipe from site traffic

Protects pipe from site traffic

Available with 10mm insulation layer

Available with 10mm insulation layer

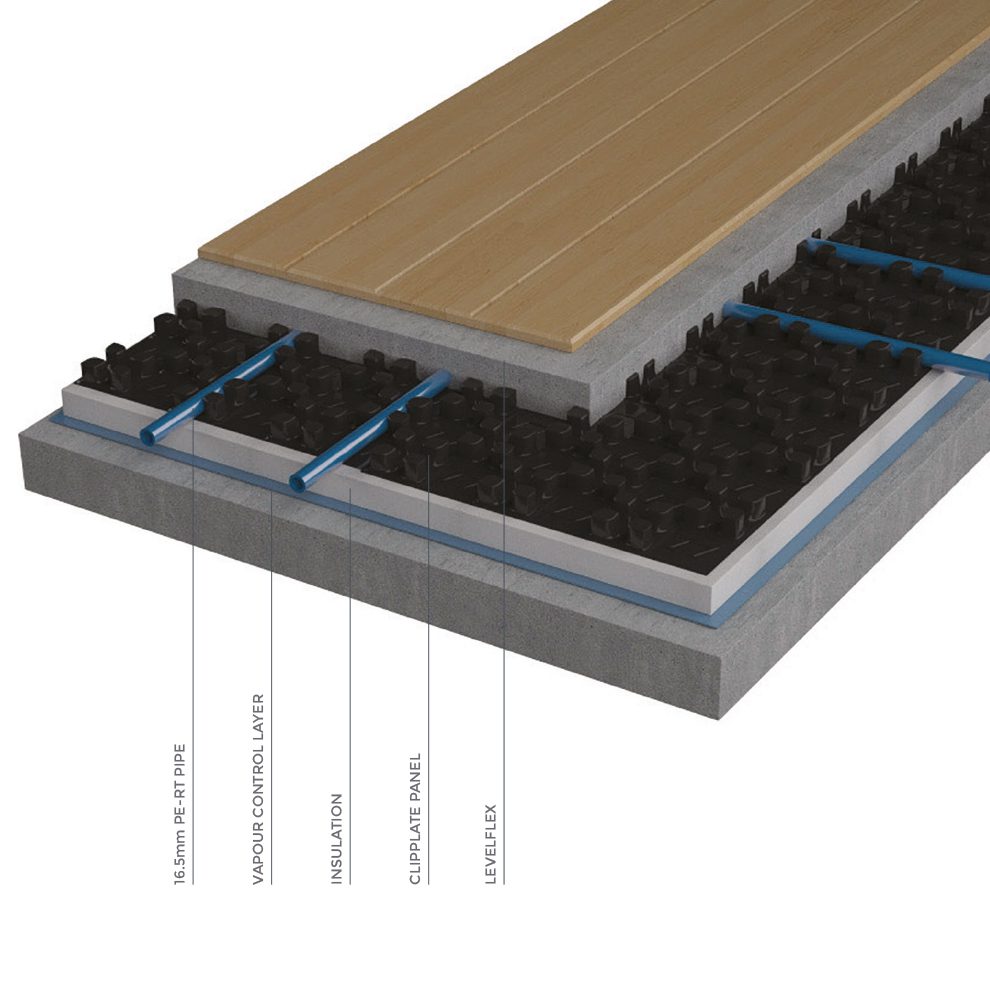

Pipe protector and easy to lay in-screed underfloor heating system.

 Why ScreedPlate?

  • Simple installation compared to traditional screed systems
  • Protects pipe from site traffic and floating in screed
  • Available with pre-attached insulation
  • Interlocking panels with multi-directional channels

The ScreedPlate system has been purposely designed to avoid using fixings and staples in the floor. ScreedPlates have castellations in the panel at set centres to provide a consistent/even guide for the spacing and good grip for the pipe, as well as providing protection for the pipe from site traffic.

The panel is designed to allow the pipe to easily change direction and also provide a simple method of installation where the pipe approaches the manifold.

This system is available with a 10mm integrated insulation layer. This version provides a reduction in required height as opposed to insulation and staples on upper floors and existing insulated floors.

ScreedPlate can be installed over any sub-floor. Where floor build-up is limited, ScreedPlates 11 can be used which features integrated 10mm EPS provides some resistance when the product is laid over an insulated floor. The panel is designed to allow pipes to be installed at spacings as close as 50mm and at 45° & 90° bends, providing additional flexibility.

ScreedPlate – for Screeded Floors


Panel Thickness (mm)
Length (mm)
Width (mm)
Suitable For
Screeded floors
Pipe Centres (mm)
150/ 200
Heat Output (W/m2)
Acoustic Installations
Weight With Water (kg/m2)

Compare similar products

Staple – for Screeded Floors
View more + Compare

Heat outputs

Based on 16.5mm PE-RT pipe at 150mm centres with 65mm sand/cement screed laid over. Air Temperature = 20°C. 0.15 m²K/W = 1.5 TOG.

Heat outputs are dependent on the water temperature, floor construction, system dimensioning, floor finish & design conditions. Contact us for advice and information.

Floor Finish Floor and Return Water Temperature (˚C)





Tile Finish (0.01m²K/W)

150 W/m²

126 W/m²

102 W/m²

78 W/m²

15mm Wood Finish (0.1m²K/W)

105 W/m²

88 W/m²

71 W/m²

54 W/m²

Carpet & Underlay

88 W/m²

74 W/m²

60 W/m²

46 W/m²

How to specify

We recommend that you order our products directly through us so that you obtain the most appropriate system and performance specification for the project.

To get a quote please click here or call 01392 36 36 05

Information on product performance and suitability can be supplied by our projects team who are available via our technical support line – 01392 36 36 05. Alternatively please speak to your local business development manager or area sales manager who will happily talk you through our product range and also arrange for samples as you may require.

If you need information on complex constructions such as those with specific acoustic properties, or you have a specialist requirement that is not covered by our standard product range please call 01392 36 36 05.

Detailed installation instructions and a layout plan of the system is included in every system that gets dispatched to site. If you require any additional information at the time of installation we recommend you visit our resources library on our website.

A comprehensive support knowledgebase is also available that contains a wealth of information around installing and commissioning our systems. You can visit the knowledgebase online at
